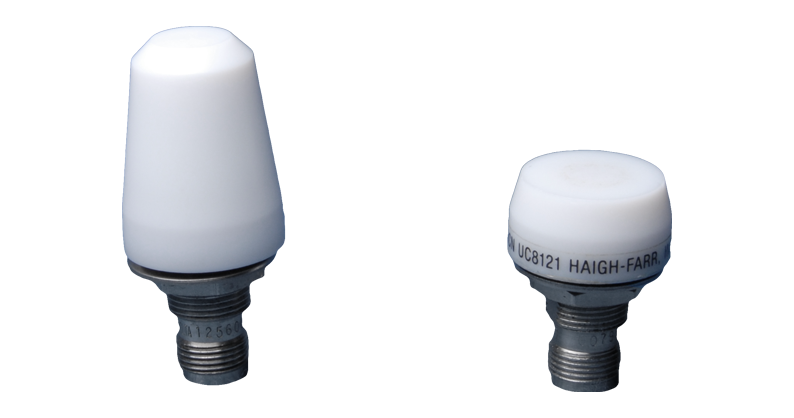

Button Antennas
Haigh-Farr Button antennas are designed for applications in which size and weight are critical, covering frequencies from 350 MHz to 9.6 GHz. All Button antennas provide the omnidirectional coverage of a stub, in a rugged package, with Models
2107 and 13215 designed to fill in the overhead null. Haigh-Farr offers a broader band Button (P/N BN1-13110) supporting parts of L, S, and C- bands. Like all Haigh-Farr products, our Button antennas are crafted using reliable materials
and well-proven methods of construction. High-impact, high-temperature radomes, provide protection from environments containing moisture and contaminants found in airborne applications.
The antenna is mounted through a “D” hole in the vehicle and secured using a lock washer and nut, with vehicle sealing achieved through an integral O-Ring.
With over 50 years experience designing and producing antennas, Haigh-Farr may already have a solution to meet your needs. To request additional datasheets, please email datasheets@haigh-farr.com.
Features
- Omnidirectional coverage
- Overhead null filled in (model 2107, 13215)
- Frequencies from 350 MHz to 9.6
GHz Ultra small - High impact radome material
- Built to withstand extreme shock and vibration environments
Applications
- Data links, telemetry, transponder
- Micro Aircrafts
- Missiles
Aircrafts and Helicopters- Drones
- Tactical Missiles
- Small footprint
applications
