Conformal Antennas
Where zero or minimal protrusion from vehicle outer mold line is necessary.
WraparoundTMAntennas

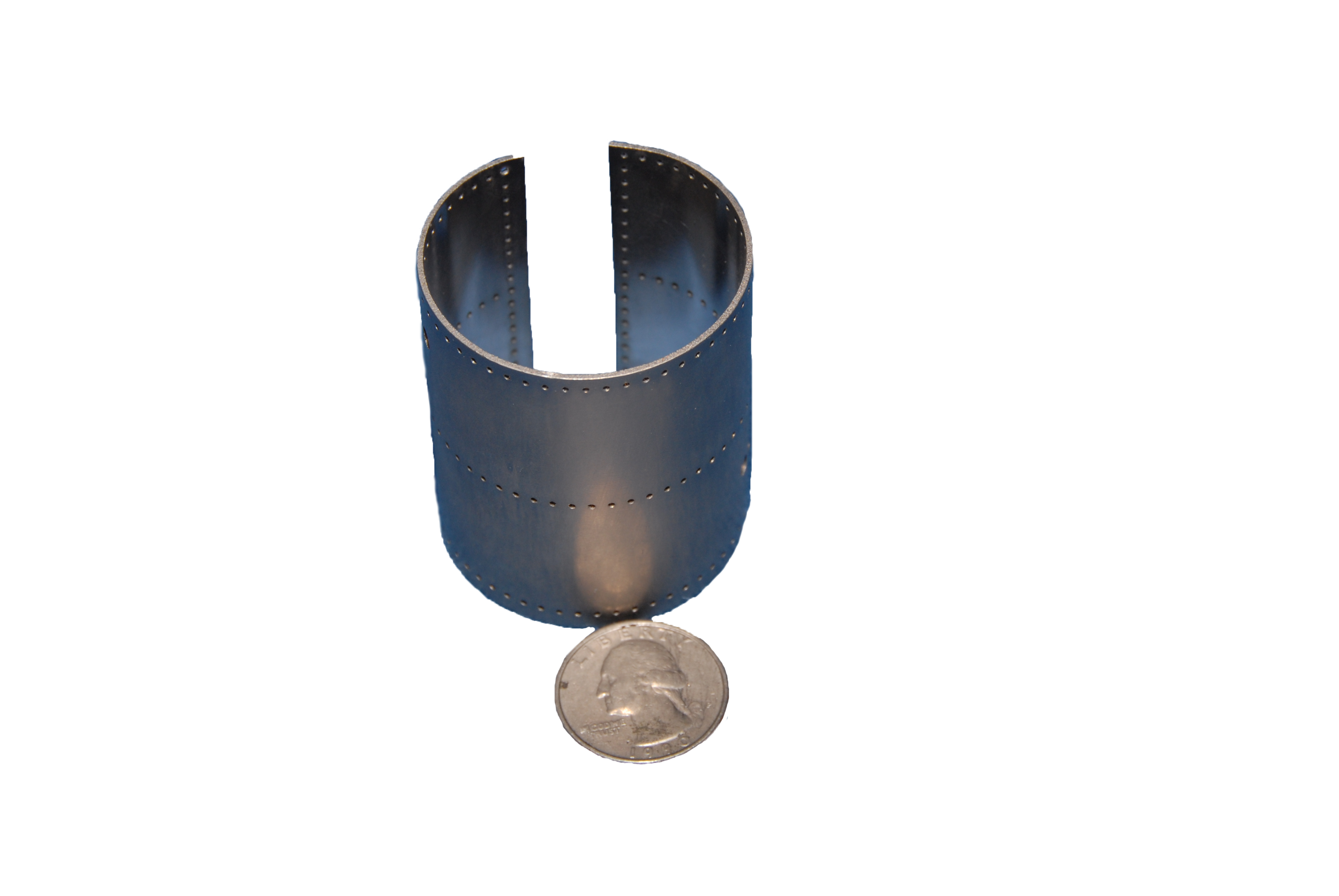

The Haigh-Farr Wraparound™ is a self-contained, omnidirectional antenna for cylindrical or conical shaped vehicles. A single point feed is used and no external splitters, combiners or cable harnesses are required for installation. The antenna may be mounted flush, or on the exterior of the vehicle.
Designs are available from 300 MHz to 13 GHz with typical applications including Flight Termination, GPS, Telemetry, Data Links and Transponder. Multiple antennas can be combined within the same physical Wraparound™, providing a multi-task solution in a single, compact package.
Designs are available from 300 MHz to 13 GHz with typical applications including Flight Termination, GPS, Telemetry, Data Links and Transponder. Multiple antennas can be combined within the same physical Wraparound™, providing a multi-task solution in a single, compact package.
- High aero-heating protection available
- No external dividers and cables required
- Conformal - flush or external mounting
- Rugged construction - designed for high G, high radial G (spinup), and extreme vibration environments
- Omnidirectional: full spherical coverage
- 300 MHz to 13 GHz
- OEM or retro-fit applications
- Single point feed
- Fastened or bonded to the vehicle
- Multi-channel designs
- Guided bomb
- Oil rigs
- Spacecraft
- Drones
- Launch vehicles
- Artillery round
- Missiles
- High speed drones and targets
- Scoring systems
- Atmospheric rockets
Electrical
| Operating Band: | 300 MHz to 13 GHz |
| Radiation Pattern: | See plots on following Downloadable PDF |
| Input Imedance: | 50 Ohms |
| Polarization: | Design Parameter |
| VSWR Across Band: | 2:1 Max across Band |
| Number of Channels: | Design parameter – 1, 2, 3, 4 or greater |
| Power: | 40 W cw, 5 kW peak |
| Bandwidth: | Design parameter, 1% - 5% |
Mechanical
| Weight: | Design parameter - Function of diameter and electrical requirements |
| Connector: | SMA standard, other connector options available including direct cable feeds |
| Environment: | Design parameter - typical of tactical supersonic missiles and kinetic kill weapons |
| Altitude: | Any |
| Securing: | Screw and/or Bond |
| Dimensions: | Design parameter - Function of diameter and electrical requirements; Thickness: .05” (1.25mm) to .3” (7.6 mm) |
| Mounting Surface: | Antenna is flexible and designed to naturally mate with specified cylindrical or conical surface |
